In any power plant running on steam, the purity of boiler feed water and steam is absolutely crucial; especially to steam equipments like Steam boiler, Steam turbine, Super heater, Condenser etc. Steam and Water Analysis Systems (SWAS) provide exact, precise measurements on all these critical parameters, to keep the power plant continuously running, with minimum erosion and corrosion. These are equipped with modern on-line analyzers such as Silica, Sodium, Dissolved Oxygen, pH & Conductivity etc.

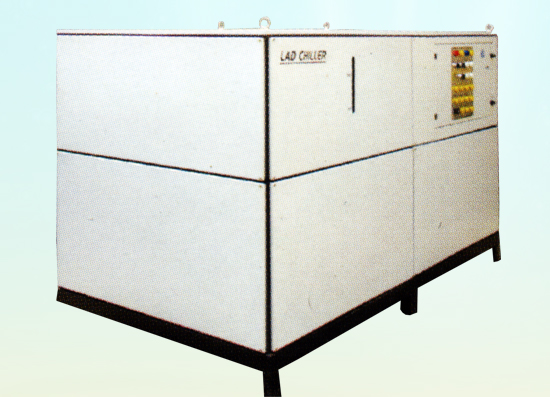

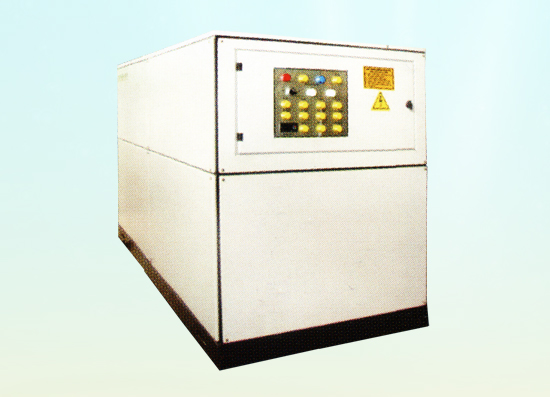

SWAS analyzers work more efficiently and effectively if supported with a well engineered sample cooling method. As per the standard, the analysis should be carried out at sample temperature of 25+/- 1 Deg. Centigrade. ANUCOOL provides cost effective Chiller systems for these SWAS applications. A typical chiller system is comprised of a tank or container, generally known as Isothermal Bath in which the sample coils are immersed. The refrigerated chiller unit continuously supplies chilled water to Isothermal Bath and thus temperatures of samples are cooled down to desired values and sent further to analyzer.

These chillers are available in capacities from 2TR up to 15TR with redundancy.

Main Features

  • Plug & play type self contained units
  • Less pulled - down time
  • Adequate Safety Controls for human and machine
  • Fault indication by visual management
  • Redundancy for Pump; Water Level Controlling on demand
  • Maintenance friendly, continuous duty design
  • Our systems are being used by NTPC, BHEL.

Technical Features

  • Cooling Capacity - From 1TR up to 15TR, 100% Stand-by Manual/Auto Changeover
  • Control System - PLC based
  • Water Outlet Temperature - 20 - 22 0C
  • Temperature Indication & Control - Digital, Subzero / Eliwell / Equivalent
  • Compressors - Hermetically Sealed Reciprocating or Scroll type; from Copeland / Danfoss / Equivalent are offered
  • Evaporators - Plate Type or Shell & Tube type offered from reputed makes like Alfa Laval/GEA
  • Condensers - Air Cooled - Finned over tube type, or Water Cooled - Shell & Tube type offered
  • Expansion Device - Thermostatic Expansion valve
  • Antifreeze Thermostats
  • Storage Tank - SS304 / 316, fully insulated with Nitrile foam, with level indicator "Minilec"
  • Process Connection for SWAS - 2" RF; Class 150# (Inlet / Outlet)
  • Process Connection for Condenser (Cooling Water) - 50 NB; Class 150# (Inlet / Outlet)
  • Pumps - Centrifugal Monoblock; Kirloskar / Crompton / Equivalent make
